GARMIN ECHOMAP™ULTRA 106sv, US Detail, W/GT56 TRANSDUCER
Information
The sunlight-readable 10” touchscreen combo features preloaded coastal and inland Garmin Navionics+™ mapping, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
The keyed-assist 10” touchscreen puts fishfinding know-how at your fingertips.
See crisp images of structure and fish in stunning detail.
Navigate confidently with built-in Garmin Navionics+™ mapping.
Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
Connect your boat to share data, sonar and charts with your other compatible devices.
Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
General |
|
| DIMENSION | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA, IPS |
| WEIGHT |
4.0 lbs (1.8 kg) |
| WATERPROOF |
IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory |
|
| ACCEPTS DATA CARDS |
2 microSD™ cards |
|---|---|
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER |
10 Hz |
| NMEA 2000 COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| SUPPORTS WAAS | |
Built-in Maps |
|
| BUILT-IN AUTO GUIDANCE+ | |
|---|---|
| GARMIN NAVIONICS+ INLAND & COASTAL | |
| TIDE TABLES | |
Optional Map Support |
|
| GARMIN NAVIONICS+™ | |
|---|---|
| GARMIN NAVIONICS VISION+™ | |
| TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features |
|
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| ACTIVECAPTAIN® COMPATIBLE |
yes |
| SAILING FEATURES | |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 2.8 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.0 A |
| MAXIMUM POWER USAGE AT 10 VDC | 24.4 W |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |
Connections |
|
| NMEA 2000® PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS |
1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK PORTS |
2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 1 LVS sonar; 1 12-pin scanning sonar |
Related products
This rugged, solar charging GPS smartwatch is tough enough to keep up with you and unique enough to fit your style. Now it comes in two sizes to fit every wrist.

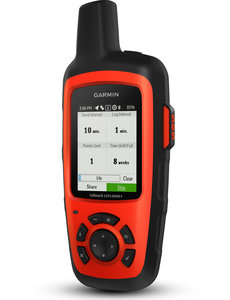

IN THE BOX:
inReach Explorer+
Preloaded with TOPO
USB cable
Carabiner clip
Documentation

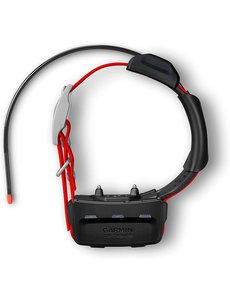

The TT 15X dog tracking and training collar has a top-mounted, high-sensitivity GPS and GLONASS receiver, so you can track your dog from up to 9 miles away.
Track and train your dogs with the Alpha 200i system, featuring inReach® technology1, a sunlight-readable 3.5” capacitive touchscreen and user-friendly, six-button design2.
Position your LiveScope™ Plus LVS34 transducer on this 0-degree pole mount for an optimal viewing angle while ice fishing (works for open water fishing too).

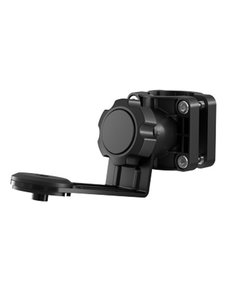

The Perspective Mode Mount takes your LiveScope™ Plus real-time scanning sonar to the next level. Attach your LVS34 transducer to this mount to add an overhead sonar view that’s perfect for scouting and fishing in shallow water.
